Description

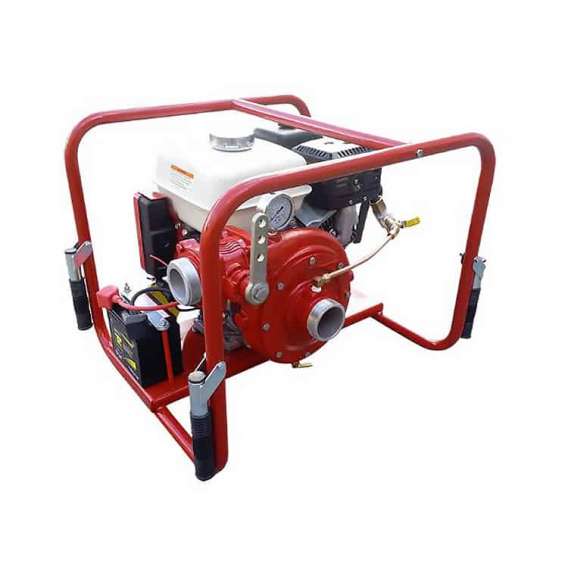

PUMP UNIT SPECIFICATIONS

• Direct drive C.E.T. single stage centrifugal pump
• Pump body made from resistant aluminum alloy
• Bronze impeller
• Mechanical shaft seal
• Exhaust priming system guaranteed up to 20’ (6 meters) lift
• One 2 1 ⁄2” (65 mm) delivery outlet with 1/4-turn ball valve
• One 2 1 ⁄2” (65 mm) suction inlet
• Dimensions: Length: 21 1 ⁄2” (545mm);
• Width: 23 1 ⁄4” (590mm); Height: 20” (508mm)
• Weight: 115 lbs (52 kg)

ENGINE SPECIFICATIONS

• GX270 Honda air cooled engine
• Single cylinder, 4-stroke gasoline engine
• 12V electric start with recoil start as a backup
• 1.4 gallon (5.3 l) integrated fuel tank

INCLUDED ACCESSORIES

• 36 watts alternator
• Pressure gauge
• Low oil alert
• 12-V battery
