Description

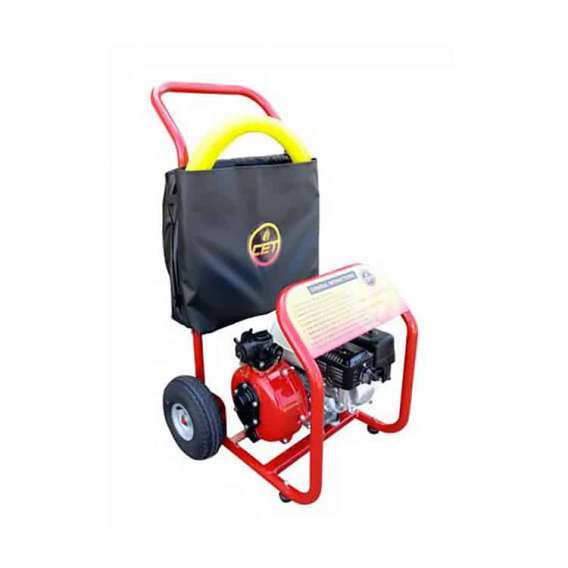

PUMP UNIT SPECIFICATIONS

• C.E.T. dual stage centrifugal pump
• Panel instructions
• Pump body made from aluminum
• Aluminum impeller
• Mechanical shaft seal
• Self priming system
• Two 1” (25 mm) delivery outlets and one 1 1⁄2” (38 mm) NPSH delivery outlet
• One 1 1⁄2” (38 mm) NPSH suction inlet
• Dimensions (approx.): Length: 27-1/4” (693 mm); Width: 27” (686 mm); Height: 44-1/4” (1124 mm)
• Weight: 155 lbs (70 kg)

ENGINE SPECIFICATIONS

• GX200 Honda air cooled engine
• Single cylinder, 4-stroke gasoline engine
• Manual recoil start
• 0.8 gallon (3.1 l) integrated fuel tank

INCLUDED ACCESSORIES

• Low oil shut off
• 1-1/2” cam-lock x 10′ suction hose
• 1-1/2” cam-lock x 100′ discharge hose
• 1-1/2” fog/straight stream nozzle
• 1-1/2” strainer with a check valve
• Removable bag for accessories
