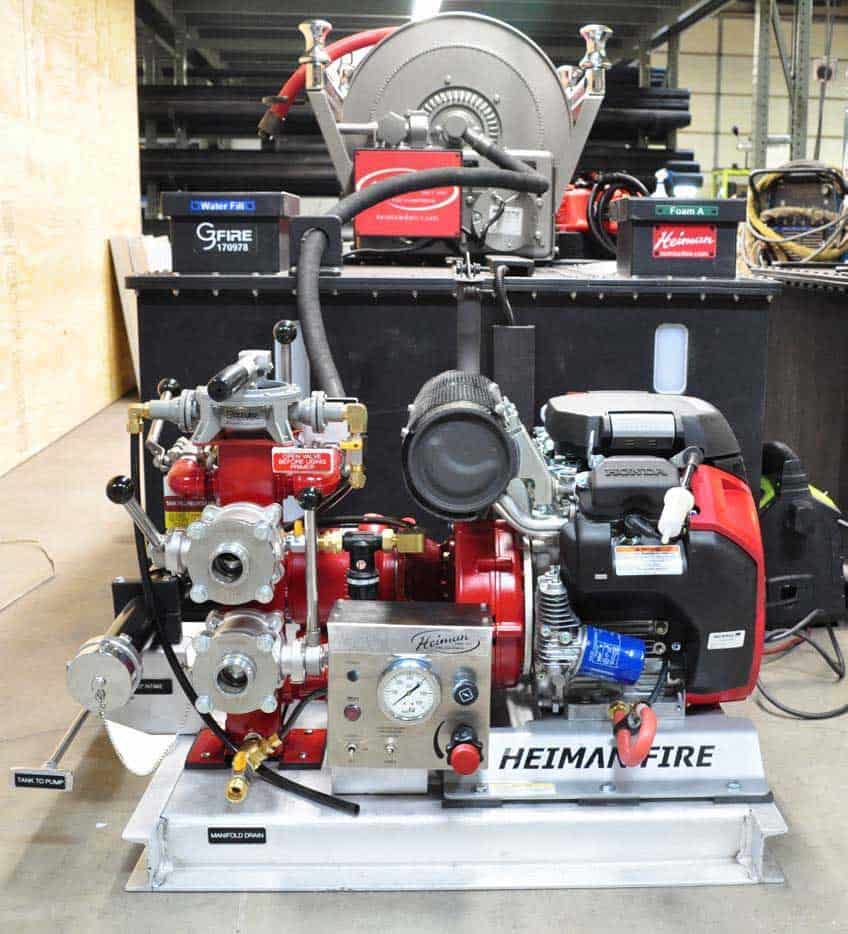

THUNDERSTORM SLIDE IN UNIT

The THUNDERSTORM SLIDE IN UNIT is built for the rigors of the fire service with the highest quality components to maximize the integrity, durability, and life of the unit.


STANDARD UNIT FEATURES

• All stainless steel plumbing
• 24hp Honda engine
• Booster reel, 1” with manual rewind
• 100’ 1” booster hose
• 3 piece stainless steel valves with NH thread and ball control handles
• Tank to pump line with valve control at the panel
-High Pressure: 2” valve
-High Volume: 2.5” valve
• Expandable discharge manifold, stainless steel, with garden hose discharge/drain
-High pressure has (1) 1.5” gate valves -High volume has a 2.5” x (2) 1.5” gated wye
• Heavy-duty Guzzler hand primer with metal top • 3 gal Fuel tank with copoly mounting bracket
• 2 ½” inlet with cap
• 1” tank fill line
• Push/Pull control linkage for the tank to pump valve
• One year warranty on the unit

Sentinel-Slide-In-Page-2-Image 2
Slide-In-Options_1-Image 1

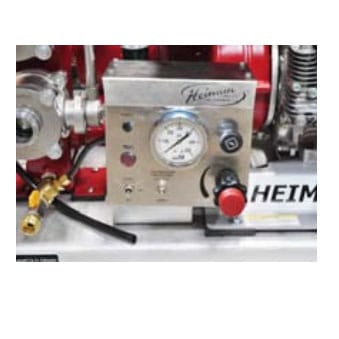

Completely enclosed control panel with on/ off start, low-pressure protection override, vernier throttle, choke, liquid-filled gauge, low oil light, & light shield with LED light

Slide-In-Options_2-Image 2

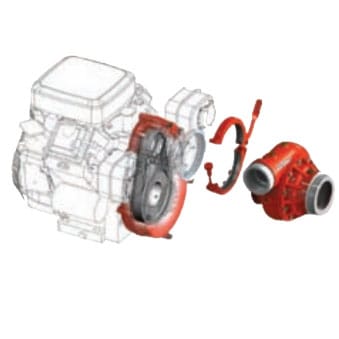

NEW- “HOT SWAP”
Field replaceable pump end
technology

Slide-In-Options_3-Image 3

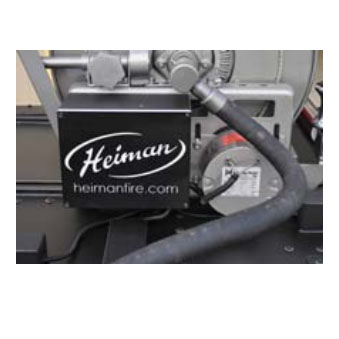

Weatherproof electrical box &
high-pressure flex line plumbing with
stainless steel couplings

Slide-In-Options_4-Image 4

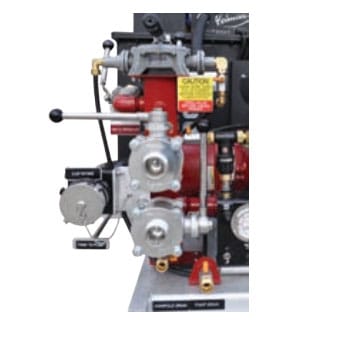

stainless steel valves with ball control
handles on a painted
stainless steel manifold

Slide-In-Options_5-Image 5

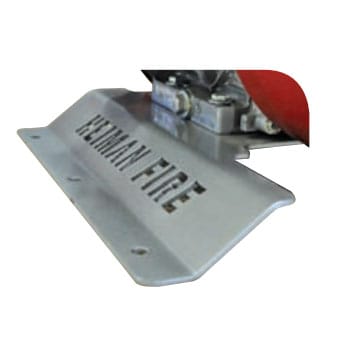

powder coated pump base

Slide-In-Options_6-Image 6

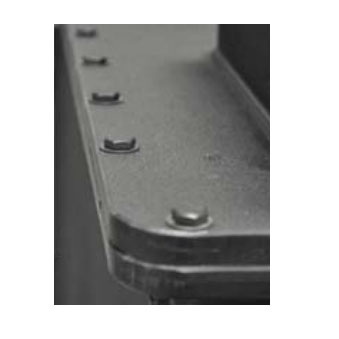

removable top with sleek stainless steel bolts

Slide-In-Options_7-Image 7

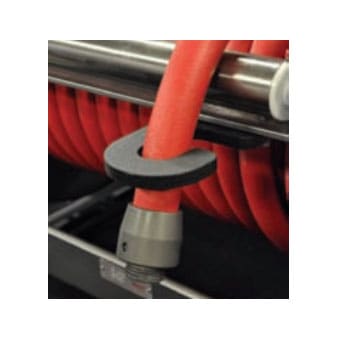

booster hose bracket

Slide-In-Options_8-Image 8

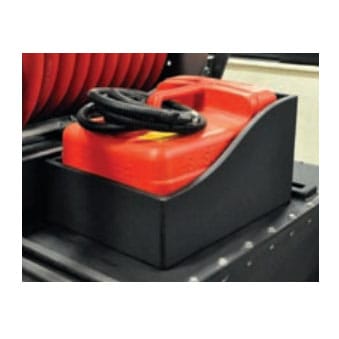

3 gal fuel tank with copoly mounting bracket
